TDE-HMM for wide-range burst detection
In this example, we show how our scikit-learn-like TDE_HMM Estimator can be used for wide-range burst detection in real EEG data. - First we will load the EEG data and visualize it, - Then we will use the TDE_HMM Class to infer the parameters of our time-delay embedded hidden Markov model (TDE-HMM), - Finally we will use the TDE_HMM Class to predict the probability of presence of each state considering our EEG data.
[1]:
# Storage management
import xarray as xr # Manages .nc (netCDF) files in Python.
# The states' informations are stored in a .nc file for each subject.
# Scientific computing
import numpy as np
import scipy.signal as signal
# Visualization
import matplotlib.pyplot as plt
1. Loading EEG data
[2]:
# Get our data
import os
import sys
sys.path.append(r"D:\centrale\3A\info\HMM\myHmmPackage")
subj=2
IC=1
dirname = "../"
filename = dirname + f"data/su{subj}IC{IC}_rawdata.nc"
filename2 = dirname + f"data/su{subj}IC{IC + 2}_rawdata.nc"
ds = xr.open_dataset(filename)
ds2 = xr.open_dataset(filename2)
ds
[2]:
<xarray.Dataset> Dimensions: (time: 1793, trials: 675, info: 1) Coordinates: * time (time) float64 -4.0 -3.996 -3.992 -3.988 ... 2.992 2.996 3.0 Dimensions without coordinates: trials, info Data variables: timecourse (trials, time) float64 ... trialinfo (trials, info) float64 1.51e+04 1.51e+04 ... 2.52e+04 1.52e+04
xarray.Dataset
- time: 1793
- trials: 675
- info: 1
- time(time)float64-4.0 -3.996 -3.992 ... 2.996 3.0
array([-4. , -3.996094, -3.992188, ..., 2.992188, 2.996094, 3. ])
- timecourse(trials, time)float64...
[1210275 values with dtype=float64]
- trialinfo(trials, info)float64...
array([[15100.], [15100.], [15100.], ..., [15200.], [25200.], [15200.]])
[3]:
# X is the signal timecourse
X1 = ds['timecourse'].values[:, :, np.newaxis]
X2 = ds2['timecourse'].values[:, :, np.newaxis]
X = np.concatenate((X1, X2), axis=2)
# time is the time axis
time = ds['time'].values
[4]:
print(X.shape, time.shape)
(675, 1793, 2) (1793,)
[5]:
n = 2

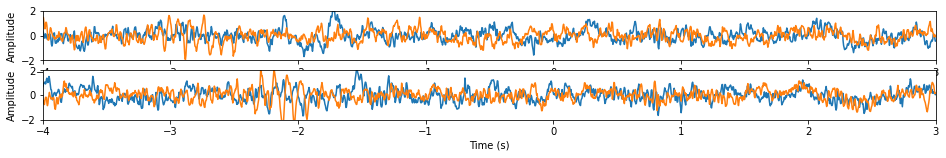

plt.figure(figsize=(16, n))
for i in range(n):
plt.subplot(n, 1, i+1)
plt.plot(time, X[i])
plt.xlim([-4, 3])
plt.xlabel('Time (s)')
plt.ylim([-2, 2])
plt.ylabel('Amplitude')
[6]:
from myHmmPackage.tde_hmm import TDE_HMM
n_states = 3
hmm = TDE_HMM(n_components=n_states)
hmm.fit(X)
[6]:
TDE_HMM()
[13]:
print("Starting probability of the HMM states: \n\n", hmm.startprob_, "\n\n")
n_states = 3
print("Transition matrix of the HMM states: \n\n", hmm.transmat_, "\n\n")
plt.figure(figsize=(1,1))
plt.imshow(hmm.transmat_, cmap='gray_r')
plt.show()
print("Mean-array for each state:")
plt.figure(figsize=(4, 4))
for state in range(n_states):
plt.plot(np.arange(-5, 5), hmm.means_[state])
plt.xlim([-5,4])
plt.ylim([-0.6,0.6])
plt.legend([f'state {i+1}' for i in range(n_states)], loc='upper right')
plt.show()

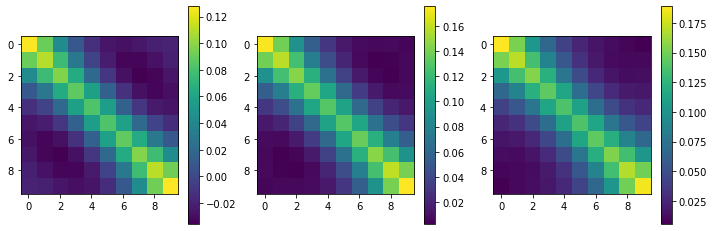

print("Covariance matrix for each state:")
plt.figure(figsize=(4*n_states, 4))
for state in range(n_states):
plt.subplot(1, n_states, state+1)
plt.imshow(hmm.covars_[state])
plt.colorbar()
plt.show()
Starting probability of the HMM states:
[1.00000000e+00 7.64920307e-16 3.42928429e-16]
Transition matrix of the HMM states:
[[9.19389757e-01 4.10661085e-02 3.95441346e-02]
[4.88116905e-02 9.51188264e-01 4.56849476e-08]
[4.94738473e-02 1.72991423e-08 9.50526135e-01]]
Mean-array for each state:
Covariance matrix for each state:
[ ]:
plt.figure(figsize=(16, 2))
plt.xlim([-4, 3])
plt.xlabel('Time (s)')
plt.ylim([0, 1.1])
plt.ylabel('Probability of Presence')
[7]:
Gamma = hmm.predict_proba(X)
print(Gamma.shape, time.shape)
[11]:
plt.figure(figsize=(16, 2))
plt.plot(time, Gamma[0])
plt.xlim([-4, 3])
plt.xlabel('Time (s)')
plt.ylim([0, 1.1])
plt.ylabel('Probability of Presence')
[11]:
Text(0, 0.5, 'Presence')
